	Equipment guide 1 / 2

We will meet the needs that are consistent up to manufacturing and shipping of materials procurement. Using a variety of materials such as Stainless steel, Iron, Aluminum , Brass , copper, titanium processed by Machining center , CNC Lathe, Wire cut , Tapping center, our company has been manufacturing high-precision parts.

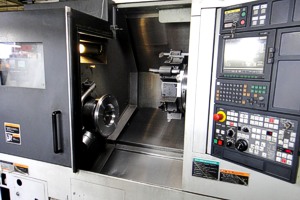

NL2500 (with Y axis)

It is a high precision CNC lathe with Y axis. Machine that has the ability to close the NT40 machining center, milling capacity is φ80, tapping is M20

(600㎜ turning length standard ,maximum machining diameterφ356)

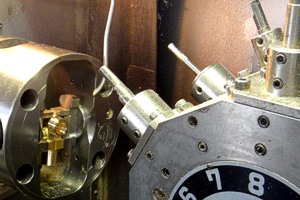

TC 25

Equipped with an indexing chuck that can be every 90 °, four-sided machining is possible in one chucking.

〔220㎜ turning length standard ,maximum machining diameterφ80〕

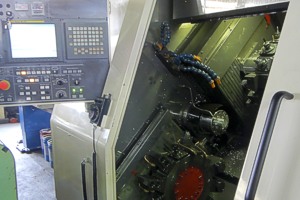

ABX-51TH2

It is a CNC lathe with a main and sub spindle. Upper turret with Y axis arranged two left and right rotary tool that can be attached to all 12 stations, there is a lower turret further processing can be performed for both spindles, front and back simultaneously complex machining can be performed by a total of 36 tools. It is a super turning centers to achieve high efficiency of the functional components processing completion goods.
(Turning length 125mm maximum machining diameter φ51mm standard)

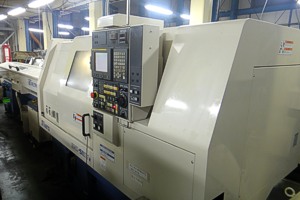

BND 51SY2

It is two-spindle CNC lathe.
Turret tool holder in the direction of each spindle is mounted, composite processing by the rotating tool is available, the number of tools can be doubled by installing a double plane tools. By this flexible tooling, machining bar material is capable of high-efficiency combined processing.
(Maximum machining diameter φ51mm , standard machining length 320mm)

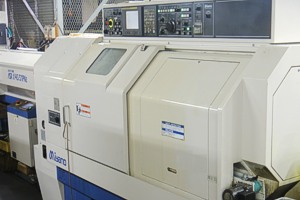

BNJ 42SY

By configuration of high-rigidity, high-precision machine, equipped with a control device incorporating NC Citizen, with one turret machine, we have achieved high productivity on par with the two turret machine. Can be attached to the rotary tool 12, the turret has allowed complete machining of complex composite parts by Y axis.

Maximum machining diameter φ42mm , Standard Turning length 100mm

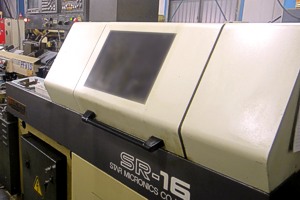

ＳＲ-16

High capacity of processing complex, it is automatic lathe of Peter Mann type that corresponds to the processing of many goods.

(205mm turning length standard maximum machining diameter φ16)

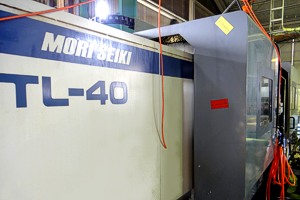

TL 40B

This CNC lathe machining of long workpieces is Automatic centering Steady Rest is equipped with a capable. (φ12 ~ φ152)

(1750mm turning length standard maximum machining diameter φ360)

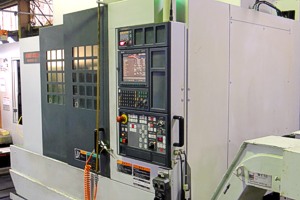

NV5000

We realize we have to shorten delivery time while maintaining high accuracy by reducing the idle time due to continuous process improvement and process efficiency of utilizing the characteristics of high precision, high acceleration, high-speed feed rate that high-speed spindle.

(X800 Y510 Z510 processing range)

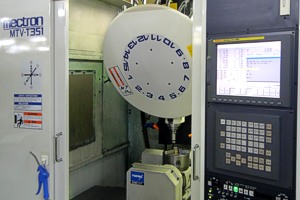

Special MTV T351

By this combination of 15 NT30 ×, 12,000 min-1 maximum speed, and with tilting table TNT100L , axis stroke X500 • Y308 • Z300, up to 5-axis machining is possible.

(X500 Y300 Z300 processing range)

● CNC Lathe
Maker	Type	Features, capabilities	Unit
Miyano	ABX-51TH2	Ø51, 12st×3turret　2spindle（Yaxis）	2
Hitachi	HiCELL B65	MaxØ61 ,2spindle（Yaxis）Tool　16st（Yaxis）	1
Miyano	BND-51SY2	Max Ø51（Yaxis）	3
Miyano	BNJ-42SY	Max Ø42 2turret　2spindle	1
Miyano	BNC-34S	Ø12～Ø34×L125　with Rotating tool	5
Miyano	BNC-34S2	Ø12～Ø34×L125　with Rotating tool	2
Miyano	BNC-34T	Ø12～Ø34×L230　with Tail Stock	2
Miyano	BNC-75Ⅱ	Ø10～Ø35(Ø75)	4
Miyano	BND-20S2	MaxØ20 Rotating tool　,with sub spindle	3
Miyano	BND-34S3	Ø12～Ø34×L125　with sub spindle	2
Miyano	BND-34S5	MaxØ34Rotating toll with sub spindle & C axis	1
Miyano	BND-34S5L	MaxØ42Rotating tool ,with sub spindle & C axss	1
Miyano	BND-34SY	MaxØ34Rotating toll with C& Baxis	1
Miyano	LD-41	Ø45×L130　with sub spindle	3
Miyano	LX-21S	MaxØ62Rotating tool ,with sub spindle & Caxis	1
Miyano	ANC-45/C200	Ø10～Ø35(Ø75)	1
Miyano	GN-3W	2 spindle	2
Mori Seiki	ZL-15SM	MaxØ61 2turret	1

● CNC Lathe
Maker	Type	Features, capabilities	Unit
Mori Seiki	NL-2500	Ø356×L705	1
Mori Seiki	NL-2500（Yaxis）	Ø356×L705	1
Ikegai	TC-15	Ø10～×L130	7
Ikegai	TC-25	Index chuck (24tools)	2
Ikegai	TCR-15	Ø10～×L130(with Rotating tool)	2
Ikegai	FX-20N	X200Z300(standard)	2
Ikegai	FX-25Z	X250Z300(standard)	2
Ikegai	FX-25NⅡ	X250Z300(standard)	1
Ikegai	TU-15	Ultrasonic vibration cutting	1
Hitachi	NK-20	Ø210×L300	1
Hitachi	NR-20	Ø210×L380	2
Hitachi	NR-23	Ø255×L600	4
Hitachi	NR-23 Ⅱ	Ø255×L600	1
Washino	LG-70F	Ø100×L100	1
Kawasaki	KBF-3BL	Rotating tool	2
Ocean	GN-4	With air chuck	2
Miyano	LE-01	Ø60×L60	2
Miyano	LX-08E	Ø60×L60	2
Miyano	LX-08C	Ø210×L320	4
Miyano	LE-12B	Ø165×L235 with Tail Stock	1
Miyano	LX-02	Ø200×L250 with Tail Stock	1
Amada	J-1	Ø170×L180 with air chuck Roder	1
Mori Seiki	TL-40B	Ø360×L1,750	1

● CNC Peter Mann type Lathe
Maker	Type	Features, capabilities	Unit
Citizen	M-20	MaxØ20Rotating tool, sub spindle & C axis	1
Citizen	F12	MaxØ12 Rotating tool	1
Citizen	F25Ⅲ	MaxØ42Rotating toll C axis	1
Star	SR-16	MaxØ16Rotating tool sub spindle & c axis	1
Star	RNC-16	MaxØ16	2

● Machining Cente
Maker	Type	Features, capabilities	Unit
Mori Seiki	NV5000	X800 Y510 Z510	1
Mori Seiki	MV-40M	X560 Y410 Z460	2
Ikegai	FU-4	X300Y400Z300(U axis)	1
Ikegai	TVU5	X1,000Y510Z520(Uaxis)	1
Hitachi	VM40Π	X560Y410Z410	1
Hitachi	VA40	Ø400 X710Y400Z600	1
Miyano	V1-25	X200Y110Z230 (Pallet chenger)	1

●　Tapping Center
Maker	Type	Features, capabilities	Unit
Brother	TC-225	X420Y320Z250	2
Brother	TC-227	X420Y300Z250	5
Brother	TC-229N-O	X610Y360Z270(14 tools)	1
Brother	TC-321	Pallet chenger	2
Miyano	MYV-T35	X500Y380Z250	3
Miyano	MYV-T351	X500Y380Z300	1
Miyano	MYV-T351	X500Y300Z300（with Tilting table）	1
Miyano	MYV-T351A	With auto loader	1
Sugino	V8	Rotary table(Ø650)	1
